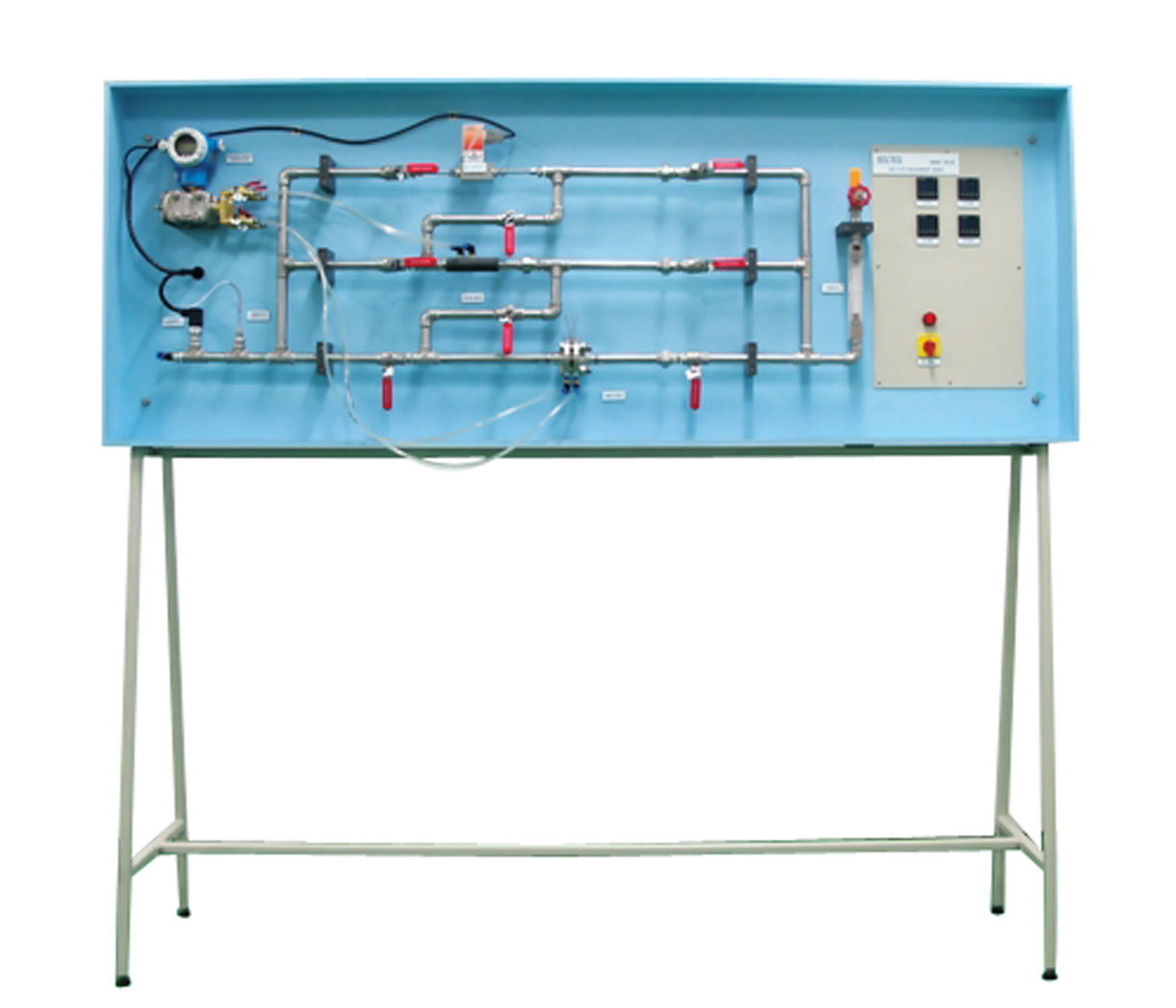

Gas Flow Measurement Bench

This Gas Flow Measurement Bench is designed for students to study the fluid flow of compressible gas.

SKU: FM120 Category: Fundamentals of Aerodynamics & Airflow

Description
Reviews (0)

This unit consists of:

Venturi meter made of clear acrylic
Orifice plate made of clear acrylic
Digital flowmeter
Temperature sensor
Rotameter
Water and mercury manometer

Experimental capabilities:

Flow measurement using venturi meter.
Flow measurement using orifice plate.
Flow measurement using rotameter.
Use of manometers.
Flow compensation for pressure and temperature.
Jet dispersion measurements.
Flow measurement using electronic flowmeter (optional).
