This unit consists of:
- Weir plates
- Rectangular notch
- Vee notch
Experimental capabilities:
- Demonstration of flow characteristic of weir:
I. Rectangular notch
II. Vee (V) notch
- Determination of discharge coefficients of weir plates

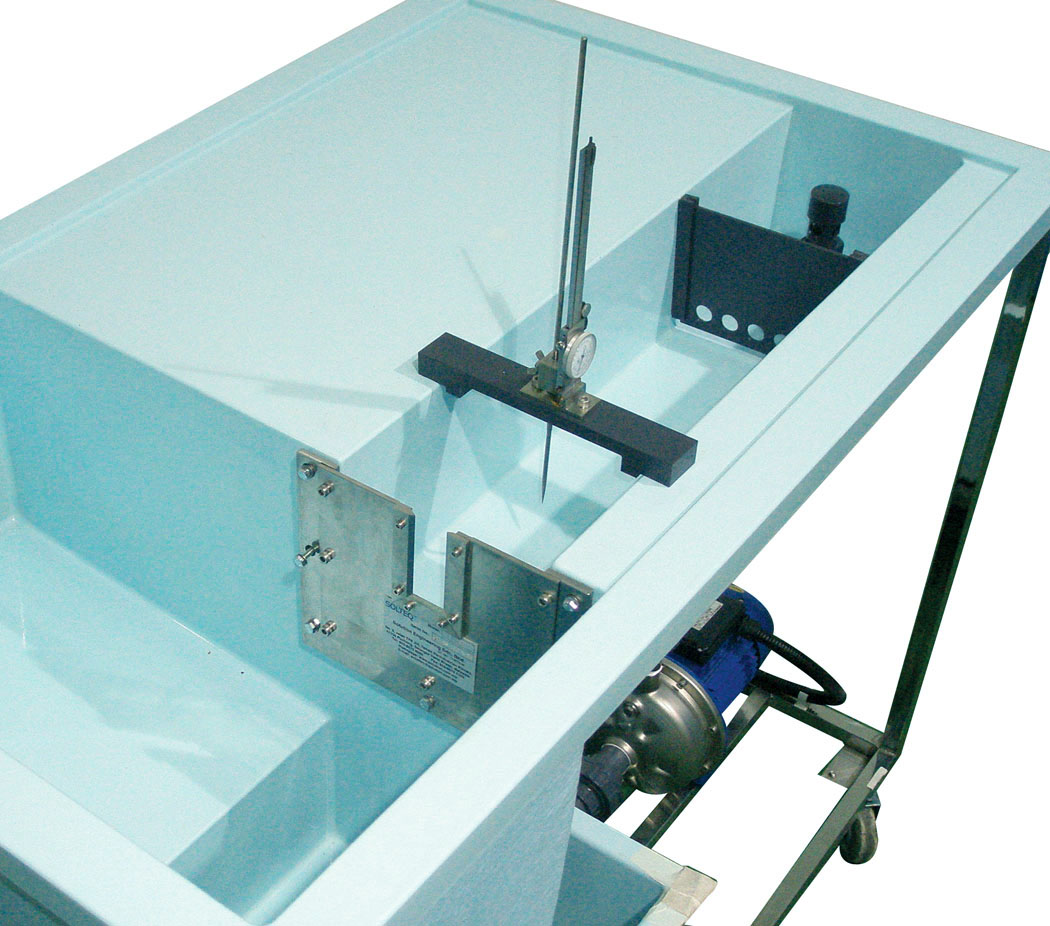

Flow Over Weirs
This Flow Over Weirs apparatus comes with two weir plates of different shapes, allowing familiarisation and comparison with weir theory. The unit is capable to demonstrate flow characteristic cover.
