The CNC Panel Simulator with Machine Simulation

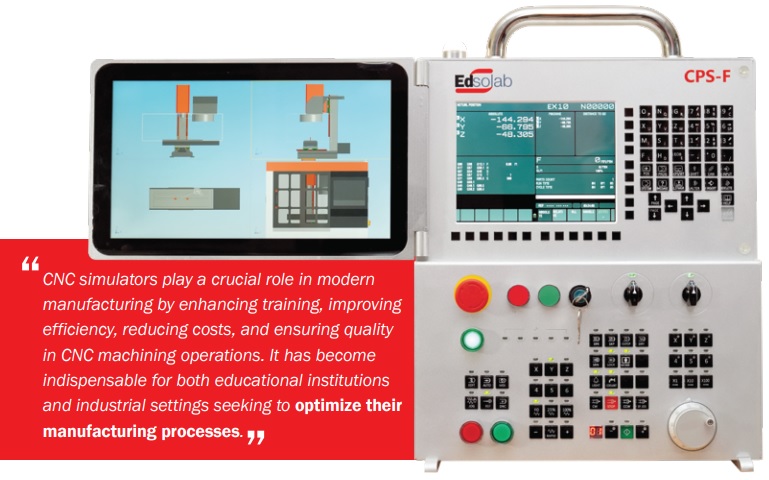

Edsolab CNC Panel Simulator (CPS) incorporates the same equipment one would find on a standard CNC machine utilizing Siemens/ Fanuc state-of-the-art Controls. With a multi-point touch screen and a broad array of push button controls, students can program, configure, and run a multitude of different operations common in the CNC machining industry.
This simulator can run from a mill to a lathe with a simple parameter change. The simulator can run different control version of Siemens / Fanuc depends on the option chosen. The simulator is equipped with the 15.6-inch Intuitive touch screen allowing the user to view the live machine movement, tooling, and part machining.
Features
Touch screen and full QWERTY style key panel with
durable resin keys
USB and SD card interface
2D and 3D part simulation
Ability to run 4+1 or 3+2 axis programs
Tool center point control (3 linear + 1 rotary axis)
mill/lathe conversion programming
Benefits
Replicates Siemens / Fanuc control interface commonly found on machining centers throughout the world.
Programs can be stored, created, edited, and run from SD and USB memory.
Enables the student to review part design prior to machining cycle.
Programing flexibility covers a multitude of CNC machines in various industries.
Allows students to learn setting tool and work offsets quickly and easily.
Light Weight Design
Designed for the classroom environment, this unit easily sits on a desktop and is portable.
Part Programming and CAM Interface
The CPS allows the user to experience the same feel of working in real machine with the similar size of control display and keys. The users can perform programming and simulation effortlessly with the virtual machine simulation. The seamless multiport connectivity allows external CAM program testing and simulation in the virtual machine by selecting from the library or by creating the user defined machine specifications.
Connectivity
A built-in USB port allows the use of external USB drives and flash memory devices for program storage, transfer, and DNC operations. Ethernet and WIFI connectivity allow easy access to local networks. The HDMI port allows the teachers to connect to the larger screen for demonstration and teaching purpose.
Mill & Lathe Control
The CNC Panel Simulator can be initialized as both a mill controls and a lathe control.
Multiple Control Panel
The CNC Panel Simulator (CPS) can be initialized with a different control panel from Siemens and Fanuc.
